Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications

MOQ : 1 Ton

Price : US $750-1,150 / Ton

Model Number : DC01(ST12)

Grade : DC01

Number : 1.0330

Classification : Non-alloy quality steel

Carbon Content : max 0.12%

Manganese Content : max 0.6%

Phosphorus Content : max 0.045%

Sulfur Content : max 0.045%

Tensile Strength : 270-410 MPa

Yield Strength : 280 MPa

Elongation (Lo=80mm) : 28%

Elongation (Lo=5.65√So) : 32%

Vickers Hardness : 105 HV

Dimensions : 1220*2440, 1500*3000, 1500*6000, 2000*6000mm

Edge Type : Slit edge

Contact Now

DC01 (ST12) Electrolytically Galvanized Steel Sheet

Thin sheet metal DC01 (ST12) electrolytically galvanized steel sheet DC 01+ Ze 25/25 a PC ungreased / Type 1.0330

Product Specifications

Grade:	DC01
Number:	1.0330
Classification:	Non-alloy quality steel

Standards Compliance

EN 10130: 2006 Cold rolled low carbon steel flat products for cold forming
EN 10139: 1997 Cold rolled uncoated mild steel narrow strip for cold forming
EN 10152: 2009 Electrolytically zinc coated cold rolled steel flat products for cold forming
EN 10271: 1999 Electrolytically zinc-nickel (ZN) coated steel flat products

Chemical Composition

Chemical composition % of steel DC01 (1.0330): EN 10130-2006

Unless otherwise agreed at the time of inquiry and order, this grade may be supplied as alloy steel (for example with boron or titanium)

Element	Maximum %
C (Carbon)	0.12
Mn (Manganese)	0.6
P (Phosphorus)	0.045
S (Sulfur)	0.045

Mechanical Properties

Property	Value
Tensile Strength (Rm) - MPa	270-410
Minimum Yield Strength (ReH) - MPa	280
Min. Elongation Lo = 80 mm (%)	28
Min. Elongation Lo = 5,65 √ So (%) (+A)	32
Vickers Hardness (HV): (+A)	105

International Equivalent Grades

Warning! Equivalent grades are provided for reference only

Region	Standard	Equivalent Grade
EU EN	DC01
USA	SAE	1008, 1010
Germany	DIN, WNr	FeP01, St12
Japan	JIS	SPCC
France	AFNOR	C, F12, FeP01
England	BS	CR4, FeP01
China	GB	08, 08F
Russia	GOST	08kp, 08ps
International	ISO	Cr01, CR22

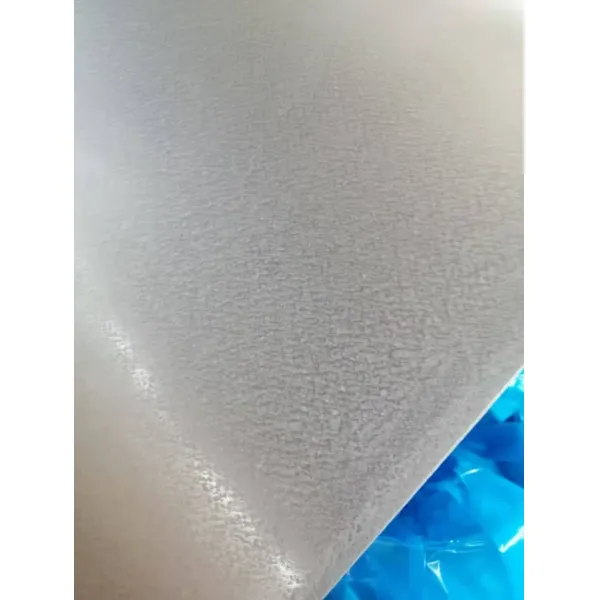

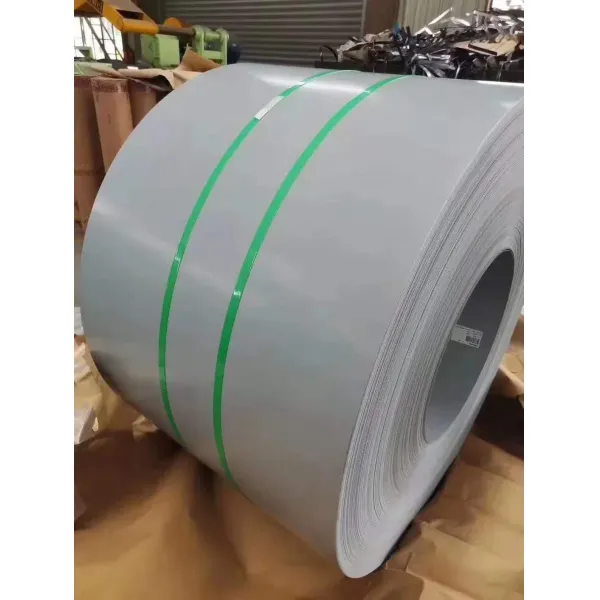

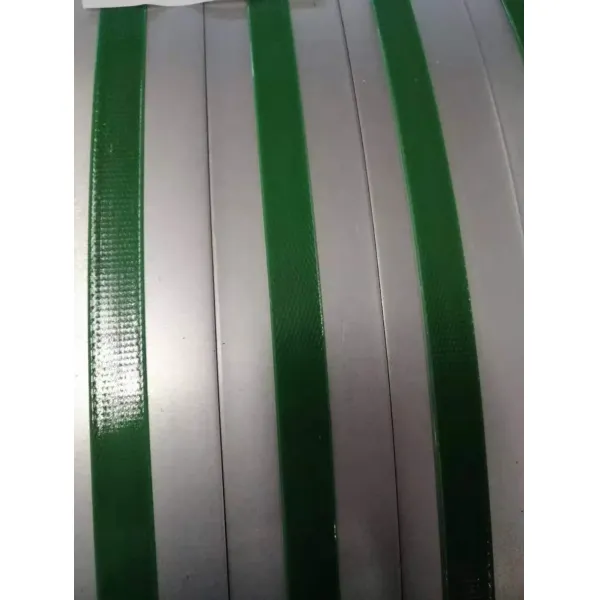

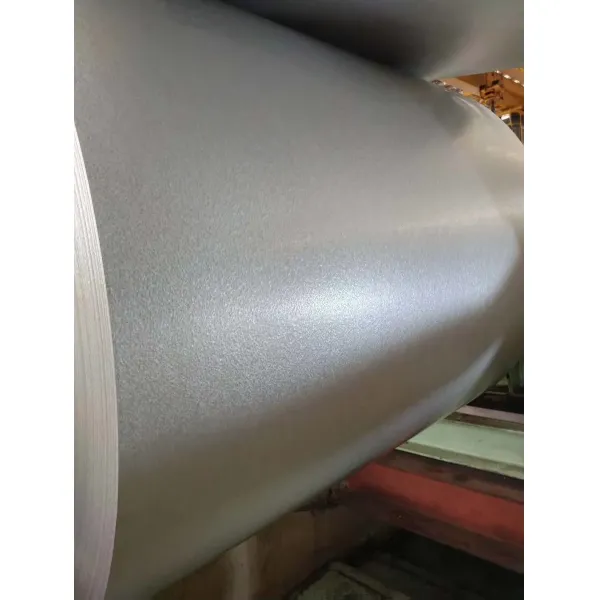

Product Images

Electrolytically Galvanized DC01 (ST12) Steel Sheet for Container Plate Applications
